弹片式电池座2.5-4P/3P正压式，1.7/2.0H，BCM-250-17A25-04，BCM-250-20A25-03，30202005，30202006，BCM-250-XXA25-YY，SPRING BATTERY CONNECTOR
CIB编号：30202005，30202006,302020**
产品料号：BCM-250-17A25-04，BCM-250-20A25-03
市场类似型号：弹片电池座 2.5 4PIN，2.5-3PIN，电池座1.7H，电池座2.0H，BC-25
尺寸图(pdf)：点击预览或下载

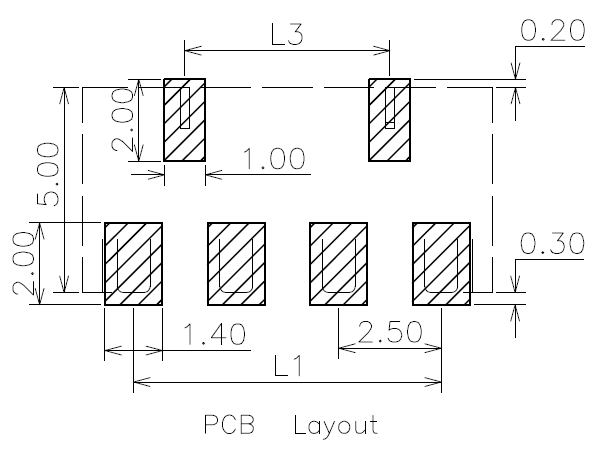

PCB图(dxf)： 点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载

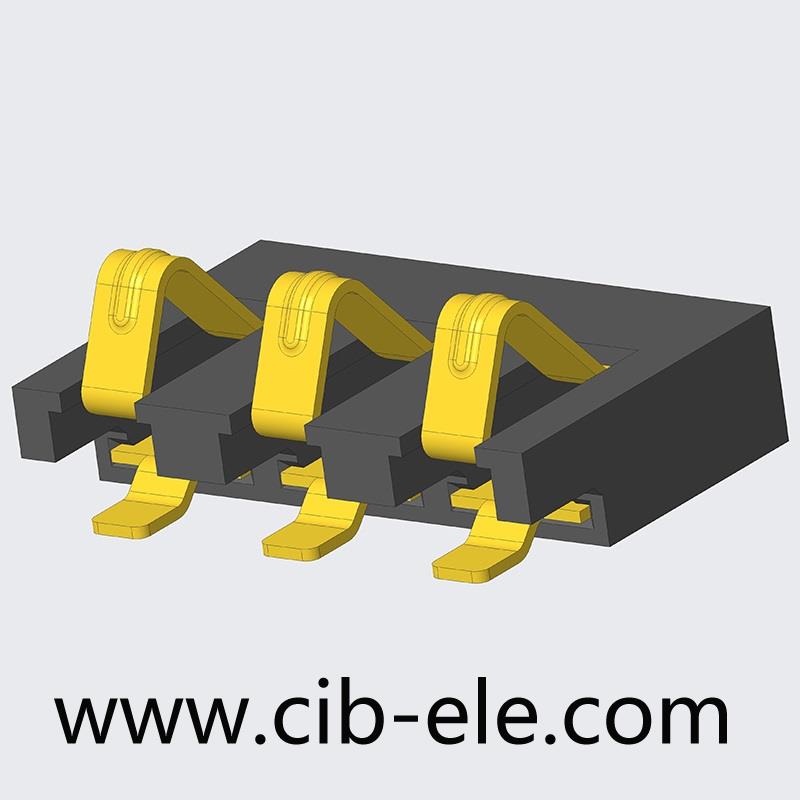

3D图：点击下载
Product Specification
|
电气 |
|
|
Current Rating |
2A |
|
Voltage Rating |
12V |
|
Contact Resistance |
50m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
500V AC |
|
机械 |
|
|
Insertion Force |
|
|
Extraction Force |
|
|
Operating Temp |
|
|
Durability Life |
|
|
材料 |
|
|
Metal |
Copper Alloy/Pe-cu |
|
Plating |
Gold/Sn |
|
Plastic |
LCP |
|
备注 |
0.5KPCS/Reel |
产品卖点：此款电池座性能稳定，不同高度，不同PIN数。
