WTB-4.2mm双排直插180度，实心针，WF-420-02D-XX54，行距4.2mm，线对板连接器，Wire to Board，Wafer，5566，5577
CIB编号：502120**(详细编码，与PIN数量有关，请联系销售部)
产品料号：WF-420-02D-XX54
市场类似型号：线对板，针座，针座4.2间距，线到板，实心针，5566，5577
尺寸图(pdf)：点击预览或下载

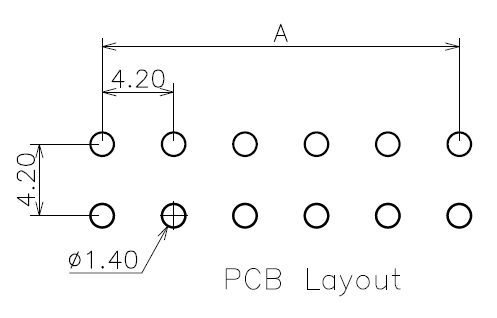

PCB图(dxf)：点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载

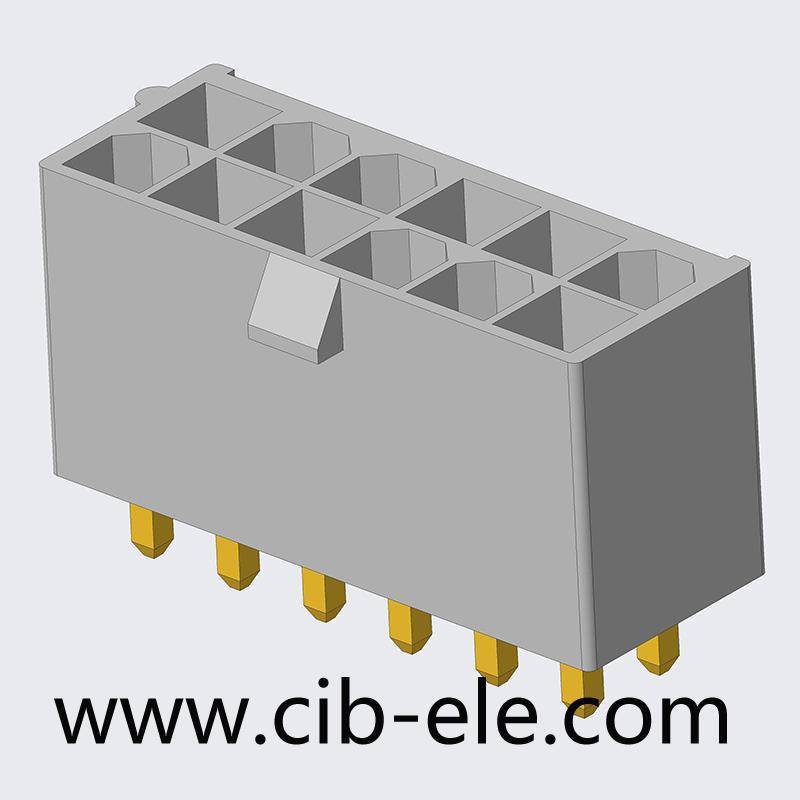

3D图：点击下载
Product Specification
|
电气 |
|
|
Current Rating |
7A |
|
Voltage Rating |
500V |
|
Contact Resistance |
50m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
200V AC |
|
机械 |
|
|
Insertion Force |
|
|
Extraction Force |
|
|
Operating Temp |
-20~+70℃ |
|
Durability Life |
|
|
材料 |
|
|
Metal |
Copper Alloy |
|
Plating |
Gold/Sn |
|
Plastic |
Nylon |
|
备注 |
0.5~1KPCS/Bag |
产品卖点：此款产品性能稳定，能替代MOLEX的5566系列。
