BNC Jack, Female Socket 75/50 Ohms，DIP90，锌合金主体，12.7H，BNC-204-5，BNC-204-X，BNC-204-7，Panel Mount, Through Hole, Right Angle Solder
CIB编号：70200001，70200002
产品料号：BNC-204-5，BNC-204-7
市场类似型号：BNC连接器，BNC锌合金，50欧姆，75欧姆，6274084，RF连接器
尺寸图(pdf)：点击预览或下载

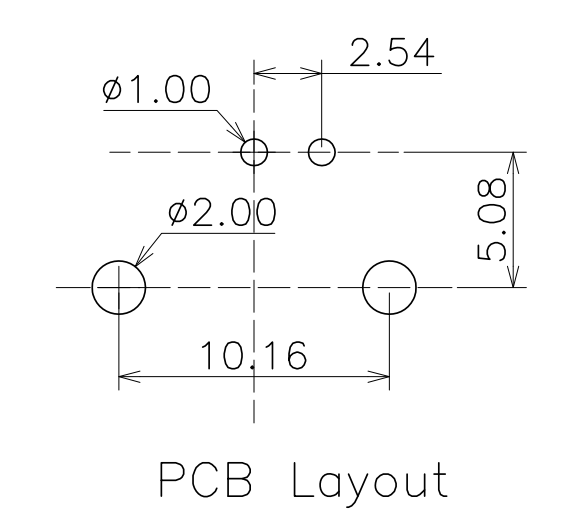

PCB图(dxf)： 点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载
3D图：点击下载
Product Specification
|
电气 |
|
|
Current Rating |
|
|
Voltage Rating |
|
|
Contact Resistance |
20m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
200V AC |
|
机械 |
|
|
Insertion Force |
|
|
Extraction Force |
|
|
Operating Temp |
-20~+70℃ |
|
Durability Life |
|
|
材料 |
|
|
Metal |
Copper Alloy/Phosphor Bronze |
|
Plating |
Gold/Sn |
|
Plastic |
LCP |
|
备注 |
|
产品卖点：此款连接器性能稳定，全金属材质。
