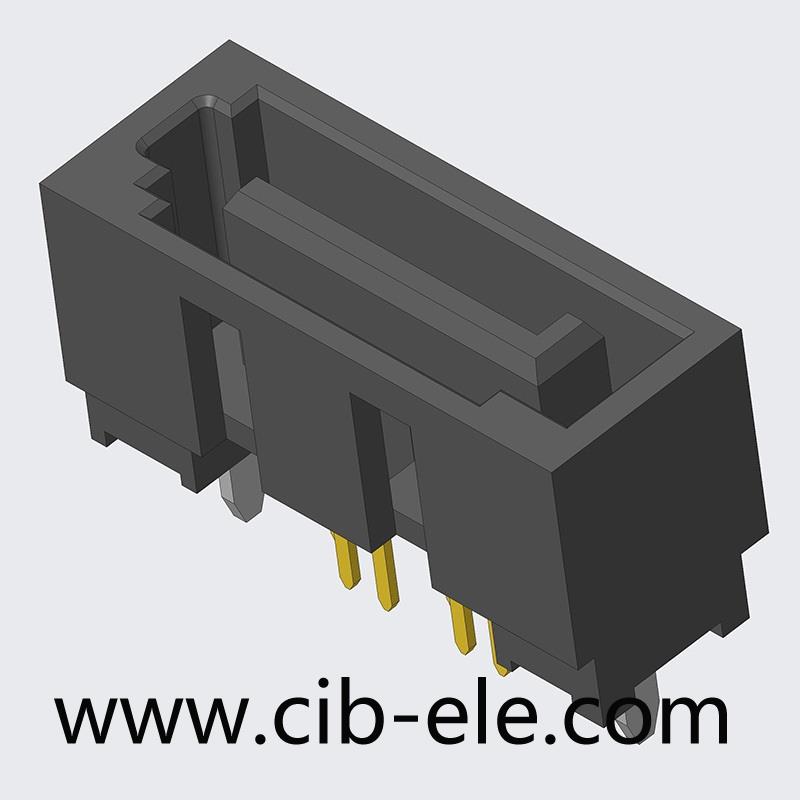

SATA 7Pin公座DIP180，全包带天窗A型，脚长3.0，ST-1107-DQ3，20602001
CIB编号：20602001
产品料号：ST-1107-DQ3
市场类似型号：SATA 7PIN，,DIP180，SATA 7P A型全包带天窗，SATA7P连接器B型3.0/2.0
尺寸图(pdf)：点击预览或下载

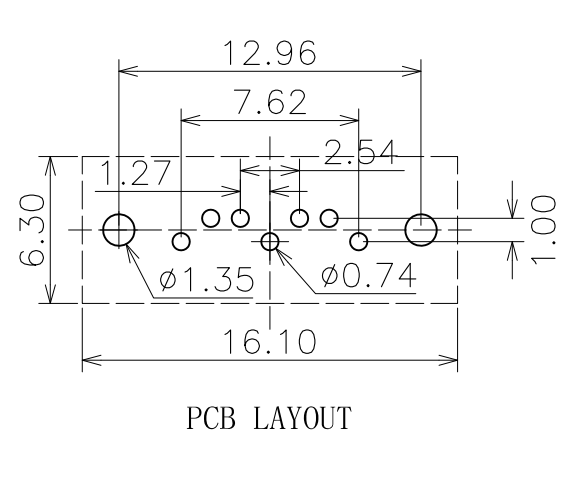

PCB图(dxf)： 点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载
3D图：点击下载
Product Specification
|
电气 |
|
|
Current Rating |
1.5A |
|
Voltage Rating |
12V |
|
Contact Resistance |
30m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
500V AC |
|
机械 |
|
|
Insertion Force |
4.5Kgf Max |
|
Extraction Force |
0.7Kgf Min |
|
Operating Temp |
-20~+70℃ |
|
Durability Life |
|
|
材料 |
|
|
Metal |
Copper Alloy/SPCC |
|
Plating |
Gold/Sn |
|
Plastic |
LCP/PBT |
|
备注 |
|
产品卖点：此款SATA性价比高。
