Type C 24P SMD+DIP，前插后贴，UF-4E
CIB编号：20106001
产品料号：UF-4E
市场类似型号：Type C 24P母座前插后贴
尺寸图(pdf)：点击预览或下载

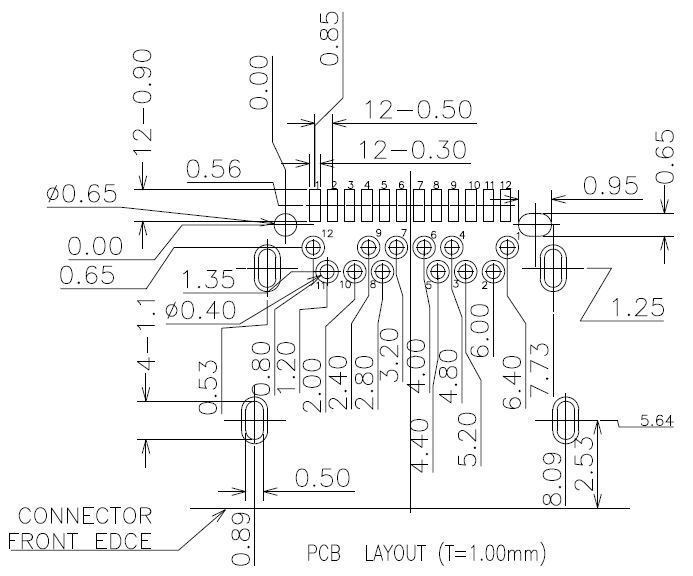

PCB图(dxf)： 点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载
3D图：点击下载
Product Specification
|
电气 |
|
|
Current Rating |
5A |
|
Voltage Rating |
100V |
|
Contact Resistance |
50m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
500V AC |
|
机械 |
|
|
Insertion Force |
5~20N |
|
Extraction Force |
8~20N |
|
Operating Temp |
-20~+70℃ |
|
Durability Life |
10000Cycles |
|
材料 |
|
|
Metal |
Copper Alloy/SUS |
|
Plating |
Gold/Sn |
|
Plastic |
LCP |
|
备注 |
1KPCS/Reel |
产品卖点：此款Type C母座，全自动机生产，性价比极高。
