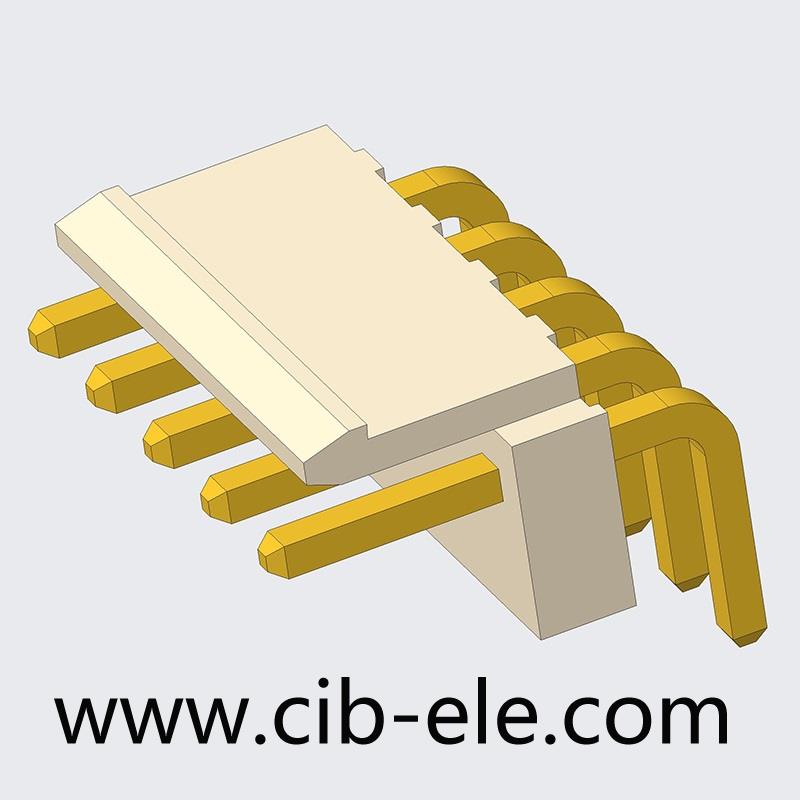

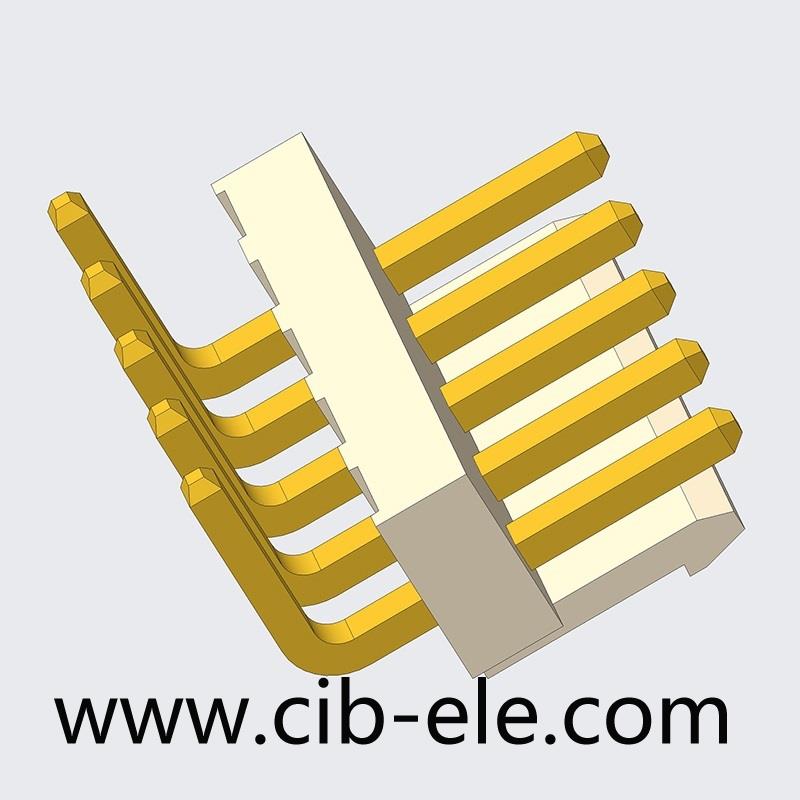

WTB-3.96mm弯插，高弯，WF-396-01C-XX54-Y，VH，线对板连接器，Wire to Board，Wafer，VH3.96
CIB编号：502110**(详细编码，与PIN数量有关，请联系销售部)
产品料号：WF-396-01C-XX54-Y
市场类似型号：线对板，针座，针座3.96间距，线到板，VH
尺寸图(pdf)：点击预览或下载
PCB图(dxf)：点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载
3D图：点击下载
Product Specification
|
电气 |
|
|
Current Rating |
7A |
|
Voltage Rating |
50V |
|
Contact Resistance |
50m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
200V AC |
|
机械 |
|
|
Insertion Force |
|
|
Extraction Force |
|
|
Operating Temp |
-20~+70℃ |
|
Durability Life |
|
|
材料 |
|
|
Metal |
Copper Alloy |
|
Plating |
Gold/Sn |
|
Plastic |
Nylon |
|
备注 |
1KPCS/Bag |
产品卖点：此款产品性能稳定。
