开关5.2x5.2，铜头，TS-55B4-XX23-Y，1.5H/1.7H/2.0H/2.3H/2.5H。。。多种高度，TS-55B4-1523-5，TS-55B4-1523-8，多种力度，高寿命
CIB编号：601060**
产品料号：TS-55B4-XX23-Y，TS-55B4-1523-5，TS-55B4-1523-8
市场类似型号：开关5.2x5.2,铜头，4*4按键，TS-A87，TS-1187，5.2*5.2轻触开关
尺寸图(pdf)：点击预览或下载

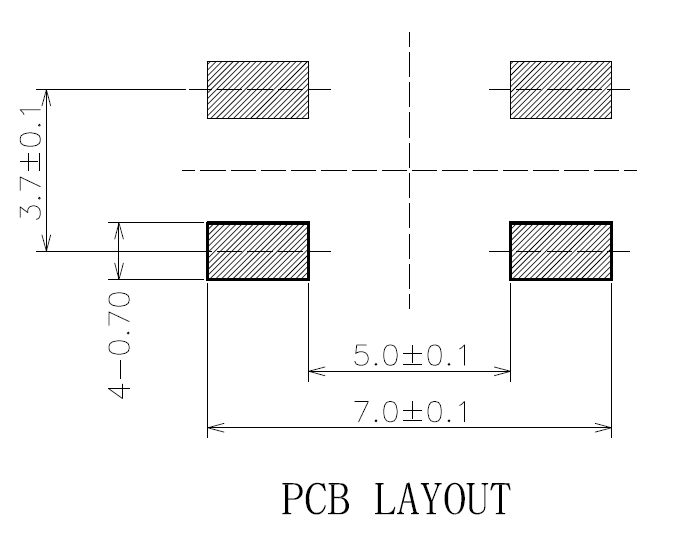

PCB图(dxf)： 点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载

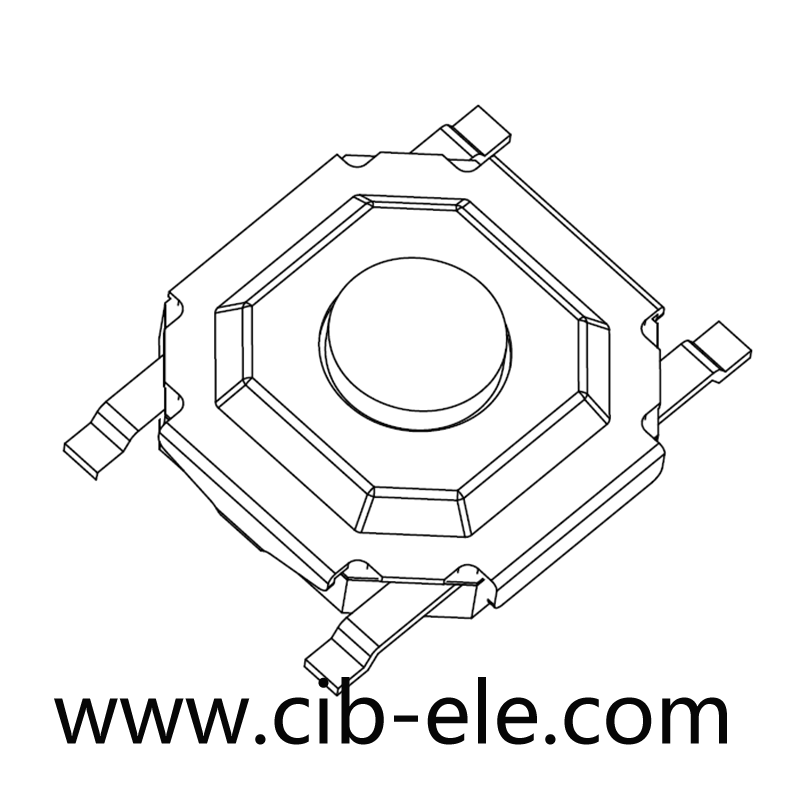

3D图：点击下载
在线查看图纸：
Product Specification
|
电气 |
|
|
Current Rating |
50mA |
|
Voltage Rating |
12V |
|
Contact Resistance |
100m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
500V AC |
|
机械 |
|
|
Operating Force |
250/180/......(±50gf) |
|
Operating Temp |
-20~+70℃ |
|
Durability Life |
100000Cycles |
|
材料 |
|
|
Metal |
Copper Alloy |
|
Plating |
Sn |
|
Plastic |
LCP/PPA |
|
备注 |
4KPCS/Reel |
产品卖点：此款产品自动机生产，产量保证，品质保证。
